ASTM A312-2019 the latest version
Nothing can be accomplished without standards.
With the update of the latest version of ASTM A312, we summerized the points in the below!
For the Chemical composition:
| C Max | Mn Max | P Max | S Max | Si Max | Cr | Ni | Mo | Ti | N | Cu | |
| TP304 | 0.08 | 2.00 | 0.045 | 0.03 | 1.00 | 18.0-20.0 | 8.0-11.0 | ||||
| TP304L | 0.035 | 2.00 | 0.045 | 0.03 | 1.00 | 18.0-20.0 | 8.0-13.0 | ||||
| TP310S | 0.08 | 2.00 | 0.045 | 0.03 | 1.00 | 24.0-26.0 | 19.0-22.0 | 0.75 | |||
| TP310H | 0.04-0.10 | 2.00 | 0.045 | 0.03 | 1.00 | 24.0-26.0 | 19.0-22.0 | ||||
| TP316 | 0.08 | 2.00 | 0.045 | 0.03 | 1.00 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | |||
| TP316L | 0.035 | 2.00 | 0.045 | 0.03 | 1.00 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | |||
| TP316Ti | 0.08 | 2.00 | 0.045 | 0.03 | 1.00 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | 5(C+N)-0.7 | 0.1 | |
| TP317 | 0.08 | 2.00 | 0.045 | 0.03 | 1.00 | 18.0-20.0 | 11.0-15.0 | 3.0-4.0 | |||
| TP317L | 0.035 | 2.00 | 0.045 | 0.03 | 1.00 | 18.0-20.0 | 11.0-15.0 | 3.0-4.0 | |||
| TP321 | 0.08 | 2.00 | 0.045 | 0.03 | 1.00 | 17.0-19.0 | 9.0-12.0 | 5(C+N)-0.7 | 0.1 | ||
| TP321H | 0.04-0.10 | 2.00 | 0.045 | 0.03 | 1.00 | 17.0-19.0 | 9.0-12.0 | 4(C+N)-0.7 | 0.1 | ||
| N08904 | 0.02 | 2.00 | 0.040 | 0.03 | 1.00 | 19.0-23.0 | 23.0-28.0 | 4.0-5.0 | 0.1 | 1.0-2.0 |
For the Mechanical Properties:
| Tensile Strength (MPa) | Yield Strength (MPa) | Elongation(%) | |
| TP304 | 205 | 515 | 35% |
| TP304L | 170 | 485 | 35% |
| TP310S | 205 | 515 | 35% |
| TP310H | 205 | 515 | 35% |
| TP316 | 205 | 515 | 35% |
| TP316L | 170 | 485 | 35% |
| TP316Ti | 205 | 515 | 35% |
| TP317 | 205 | 515 | 35% |
| TP317L | 205 | 515 | 35% |
| TP321(T≤0.375”) | 205 | 515 | 35% |
| TP321(T＞0.375”) | 170 | 480 | 35% |
| TP321H(T≤0.375”) | 205 | 515 | 35% |
| TP321H(T＞0.375”) | 170 | 480 | 35% |
| N08904 | 215 | 490 | 35% |

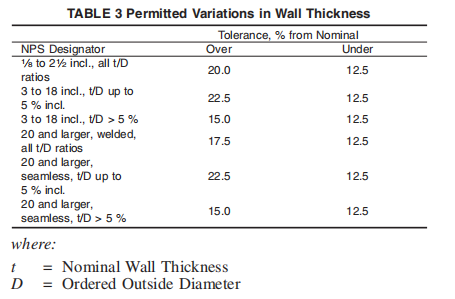

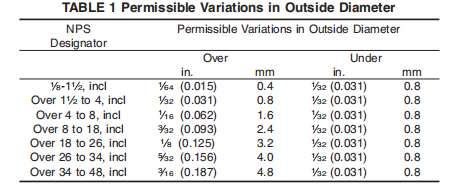

For the size tolerance:
